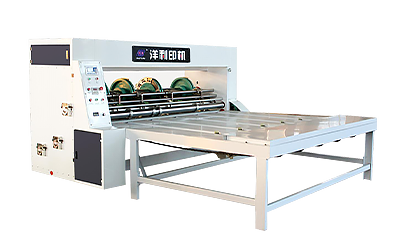

CZYL-RS4

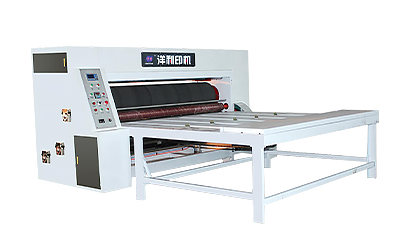

Chain feeding slotting machine(Manual type)
Contact CZYLPACK for Shipping, delivery, and payments information.
Products Category
Tag list
- 产品描述
-
Equipment Technical Specifications
◆ This series of corrugated board paper rolling and corner slotting machine is a comprehensive production equipment which integrates several processes of corrugated board blank corner slotting, rolling and edge cutting. Its main feature is manual feeding of single cardboard, which can be applied to general warped cardboard.
◆ Electric phase: slotted cutter seat 360 degrees positive and negative rotation, circumferential adjustment, the use of motor fine-tuning device, easy to operate, and accurate size adjustment, reliable locking, accurate slotting.
Technical parameters
Project 920 922 1224 1228 1426 1628 Max.speed(pcs/min 60 60 60 60 60 60 Feeding precision(mm) ±1 Min.sheet size(mm) 230×500 320×600 330×600 Max.sheet size(mm) 900×2000 900×2200 1200×2400 1200×2800 1400×2600 1600×2800 Minimum slot(L×W×H)(mm) 220×60×70 250×60×80 250×60×80 Max.slot depth(mm) 230 310 370 410 increase the blade,increase the slot depth Slotting precision(mm) ±1
Our Company
Dongguang Yangli carton machinery Co.,Ltd. is located in the middle of bohai economic circle, north Beijing and Tianjin, south according to Jinan, land and water transportation is very convenient, is a modern professional production of carton packaging machinery, printing machinery enterprises.
The company has strong technical force, advanced production and testing equipment, with professional technical and management personnel and high-quality sales team. We adhere to the quality of survival, science and technology for development, learn from others, integration of the essence of mechanical research at home and abroad, to ensure that customers supporting production of stable quality, reasonable price, new efficient packaging machinery and equipment.

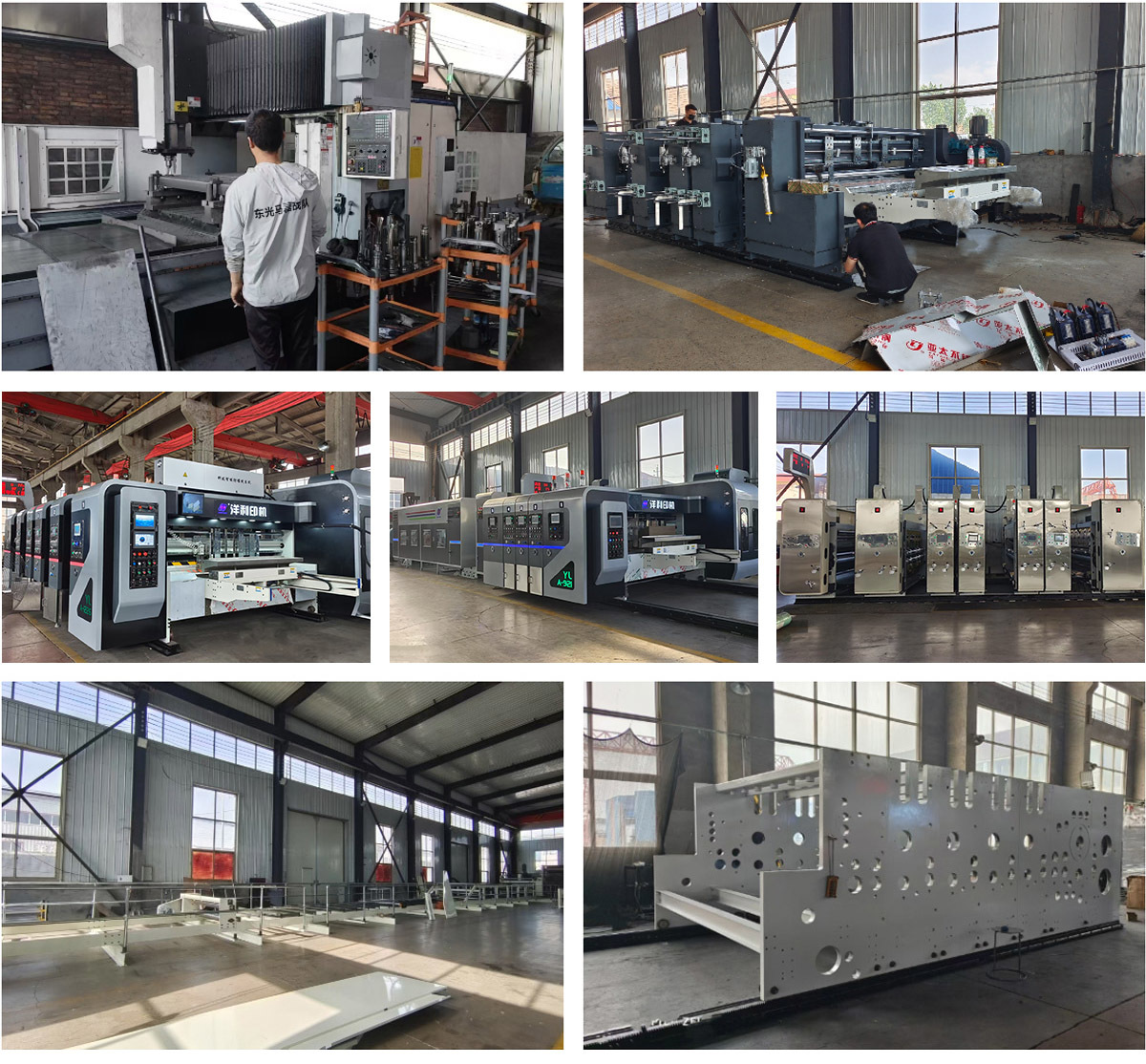

Machining Center
Packing & Delivery
Yangli company can stand out in many carton machinery enterprises, because of its strict and perfect management system. The company has established a one stop management system from production--inspection--debugging--sales--after sales service, strict control of each machine, truly make users satisfied and assured.
Company Exhibition
The product design and manufacture of our company all comply with European standards. The produced carton equipment has been exported to over 60 countries and in more than 20 provinces of China. Sales offices and after-sales service outlets are set up in each place to provide customers with guarantee services.

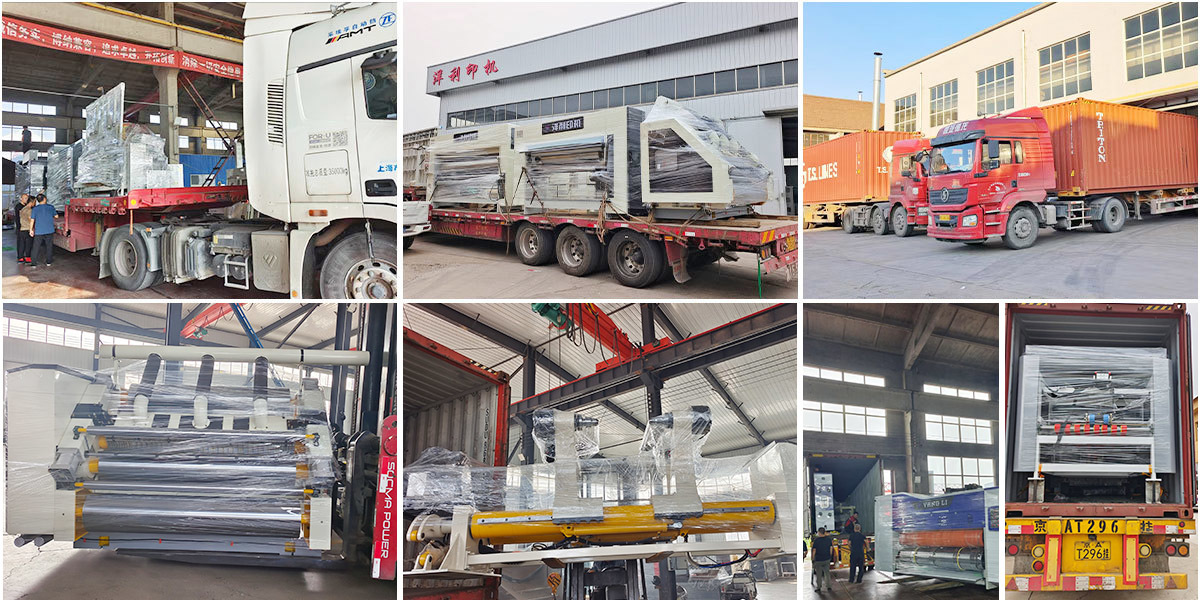

Transport
FAQs
Q：Are you a factory or a trading company?
We are a direct manufacturer which is located in Dongguang county, Cangzhou city, we mainly manufacturing corugated carton box printing slotting die cutting machine, folding gluing stitching machine, single facer corrugated machine etc. Welcome to visit our factory!
Q：How do you ensure your quality?
1. Trustworthy and long-term cooperative raw material suppliers;
2. Skilled&experienced engineer&workers;
3. Mature QC system;
4. Specially-assigned merchandiser;
5. Advanced production workshop.
Q：How about your after-sale service?
1. Special after-sale team will be 24/7 online;
2. Can guide the installation door-to-door;
3. One-year warranty for spare parts.
Q：How many languages does your machine support?
Our machine supports all the languages.
Q：How long it will take to produce machine?
Delivery time largely depends on the machine type, for some small machine like manual stitching machine, manual banding machine etc, usually we have stock available. But for the large machines like carton printing die cutting machine, automatic stitching machine etc, it usually takes around 35-50 days to produce.
