CZYL-SSP2
Semi automatic stitching machine (double pieces)
Contact CZYLPACK for Shipping, delivery, and payments information.
Products Category
Tag list
- 产品描述
-
Character
◆ TA dual purpose, can be nailed monolithic joint carton, double nail cartons, irregular cartons.
◆ Size motor control used to transform size only 2 to 3 minutes.
◆ Nail can strengthen nails, nail single, double row nail, one time.
◆ Feed automatic counting, finished goods sent banding.
◆ Suitable for large carton, binding energy and fast.
◆ Adjusting screw pitch, use the computer setting automatic nail, nail spacing of 20-120mm arbitrary adjustable.
◆ The machine adopts computer screen display failure.
◆ A bottom cartons without cover also can nail (special).
◆ For three, five, seven layer corrugated cardboard (seven layers need special instructions).
◆ The machine adopts three servo motor (that is, two head motor and a control pin).
Parameter Declaration

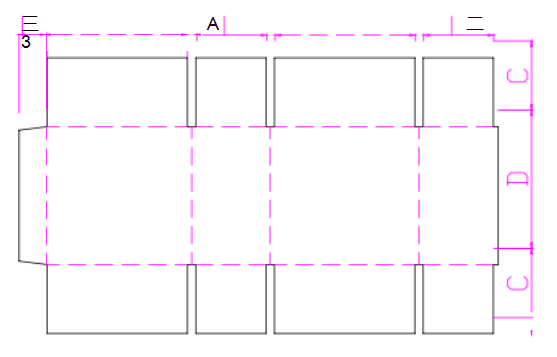

Model and parameters SDJ-3000B SDJ-3500B SDJ-4000B SDJ-4500B Maximum paper size (A + B) * 2 (mm) 6000 7000 8000 9000 Minimum paper size (A + B) * 2 (mm) 1220 1220 1220 1220 Maximum carton length of Amm 2850 3350 3850 4350 Minimum carton length of Amm 430 430 430 430 Maximum carton width of Bmm 1500 1750 2000 2250 Minimum carton width of Bmm 150 150 150 150 Maximum paper height (C + D + C) (mm) 3200 3200 3200 3200 Minimum paper height (C + D + C) (mm) 400 400 400 400 Maximum shake cap size C (mm) 600 600 600 600 Minimum shake cap size C (mm) 80 (Standard Standard)
20 (Optional)
Minimum box width of 22080 (Standard Standard)
20 (Optional)
Minimum box width of 22080 (Standard Standard)20(Optional)Minimum box width of 220 80 (Standard Standard)
20 (Optional)
Minimum box width of 220Maximum height, D (mm) 2000 2000 2000 2000 Minimum height D (mm) 200 200 200 200 Maximum nail tongue width (mm) 40 40 40 40 Pitch of nails (mm) 30-120 30-120 30-120 30-120 Nail number 2-99 2-99 2-99 2-99 Nail speed (times / mim) 600 600 600 600 machine weight (T) 4 4.3 4.6 5 SERVO MOTOR

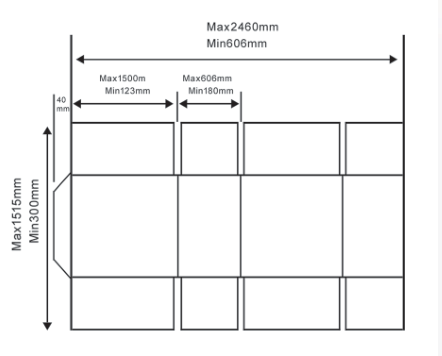

BOARD SIZE
Our Company
Dongguang Yangli carton machinery Co.,Ltd. is located in the middle of bohai economic circle, north Beijing and Tianjin, south according to Jinan, land and water transportation is very convenient, is a modern professional production of carton packaging machinery, printing machinery enterprises.
The company has strong technical force, advanced production and testing equipment, with professional technical and management personnel and high-quality sales team. We adhere to the quality of survival, science and technology for development, learn from others, integration of the essence of mechanical research at home and abroad, to ensure that customers supporting production of stable quality, reasonable price, new efficient packaging machinery and equipment.
Machining Center
Packing & Delivery
Yangli company can stand out in many carton machinery enterprises, because of its strict and perfect management system. The company has established a one stop management system from production--inspection--debugging--sales--after sales service, strict control of each machine, truly make users satisfied and assured.
Company Exhibition
The product design and manufacture of our company all comply with European standards. The produced carton equipment has been exported to over 60 countries and in more than 20 provinces of China. Sales offices and after-sales service outlets are set up in each place to provide customers with guarantee services.
Transport
FAQs
Q：Are you a factory or a trading company?
We are a direct manufacturer which is located in Dongguang county, Cangzhou city, we mainly manufacturing corugated carton box printing slotting die cutting machine, folding gluing stitching machine, single facer corrugated machine etc. Welcome to visit our factory!
Q：How do you ensure your quality?
1. Trustworthy and long-term cooperative raw material suppliers;
2. Skilled&experienced engineer&workers;
3. Mature QC system;
4. Specially-assigned merchandiser;
5. Advanced production workshop.
Q：How about your after-sale service?
1. Special after-sale team will be 24/7 online;
2. Can guide the installation door-to-door;
3. One-year warranty for spare parts.
Q：How many languages does your machine support?
Our machine supports all the languages.
Q：How long it will take to produce machine?
Delivery time largely depends on the machine type, for some small machine like manual stitching machine, manual banding machine etc, usually we have stock available. But for the large machines like carton printing die cutting machine, automatic stitching machine etc, it usually takes around 35-50 days to produce.
